Application:
Internalrotary magnetic separator is suitable for a varietyof mineral separation,including hematite,vanadium ilmenite,single magnetite,mixed ore of magnetite and hematite,and iron removal of non-magnetic minerals,manganese ore,and particularly which is suitable for separating sea beach placer on sand dredger
技术特点：
Feature:
1.内敛永磁磁路，磁场强度2000-12000Gs。
Adopting internal rotation permanent magnetic circuit,low energy consumption。
2.可配置聚磁分选介质，适合不同比磁化系数矿物的富集且同时可降低粒级回收下限
It can be configured with magnetic matrices to suit for the enrichment of minerals with different ratio susceptibility and can reduce the lower limit of recycling for granularity Level.
3.广义空间分选，不堵塞，分选粒度0-20mm。
Large sorting space,no-blocking,Partide sorting is from 0 to 20mm.
4.周边齿轮传动，结构紧凑，维护保养方便。
Transmitted by peripheral gear,Compact structure.
5.强磁性和弱磁性矿物同时分选。
It can separate strong magnetic minerals and the weak at the same time.

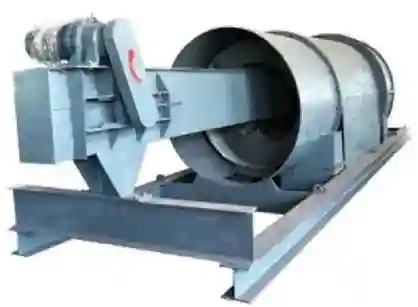

BTNX Series Intenal Rotation Magnetic Separation Machine
| 型号 Model | 分选筒直径 Diameter of separating cylinder (mm) | 分选区宽度 Width of separating area (mm) | 筒体转速 Cylinder speed (rpm) | 工作倾角 Working Angle (°) | 最大给 料粒度 Maximum feeding size (mm) | 给矿浓度 Feed density (%) | 磁场感应 强度 Magnetic induction T | 干矿量 Dry ore (t/h) | 电机功率 power kw | 整机重量 Weight T |
| BTNX3812 | 950 | 3000 | 5~20 | 0~22 | 20mm | 20~60 | 0.2-1.3 | 50-140 | 18.5 | 13 |
| BTNX4812 | 1200 | 3000 | 5~20 | 0~22 | 20mm | 20~60 | 0.2-1.3 | 120-180 | 22 | 18 |
| BTNX5614 | 1400 | 3500 | 5~20 | 0-22 | 20mm | 20~60 | 0.2-1.3 | 140-220 | 22 | 22 |
| BTNX6414 | 1600 | 3500 | 5~20 | 0-22 | 20mm | 20~60 | 0.2-1.3 | 170-270 | 25 | 26 |
| BTNX7214 | 1800 | 3500 | 5~20 | 0~22 | 20mm | 20~60 | 0.2-1.3 | 220-320 | 30 | 30 |
| BTNX8014 | 2000 | 3500 | 5~20 | 0~22 | 20mm | 20~60 | 0.2-1.3 | 260-400 | 35 | 36 |
| BTNX8814 | 2200 | 3500 | 5~20 | 0~22 | 20mm | 20~60 | 0.2-1.3 | 300-450 | 37 | 42 |
