Application:

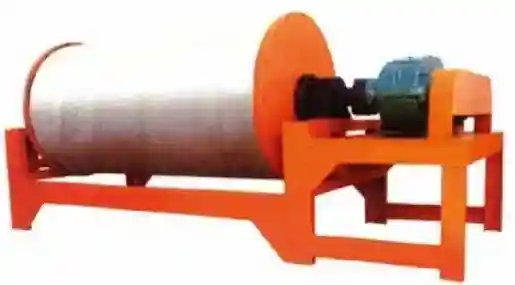

CTG 铁砂干选专用磁选机是我公司专为磁性贫
铁矿而设计的一种新型干选设备。尤其适用于风化
沙、蚂蚁沙、火山岩等软矿，也可用于中低品位磁
性矿物的粗选、富集。
It is specially designed for magneticlean iron
orey espec i a l ly suitable for weathered sand,
sand,ant volcano rocks and other soft ore,It
can be also used for the roughing separation and
concantration of the low grade magnetic minerals.
技术特点：
Feature:
- 选别粒度广，可广泛用于0-60mm 矿砂(石)的选取，并可根据用户需求，将精料品位在8-30 之间任意调整。
With wide separ 兹 tion size range, it can be widely used in O-60mm sand(stone) selection. And the grade of the concntrate can be adjusted between 8-30 grade according to user¹needs . 2. 铁砂回收率高，比传统滚简回收率提高20%-50%,产量增加30%-60%.
The rate of the iron ore recovery is high,it is about 20%-50%higher than the traditional roller recovery,and the yield increases 30%-60%at the sametime.
3.磁场强度高(最高可达10000gs), 分布均匀，透磁深度大，铁砂附着力强，使用寿命长。
The intensity of the magnetic field is high(up to 10000gs),with the following advantages: uniform distribution,large iron magnetic penetration depth,strong adhesion,long service I ifo.
4.产品结构简单，使用保养方便。
It also has the advantages of simple structure,convenient use and maintenance.
CTDG Series Big Block Permanent Magnetic Separator
| 规格型号 Model | 筒径 Roller diameter mm | 筒径 Roller diameter mm | 运输带宽 Belt width mm | 运输带 速度 Belt speed ≤m/s | 分选区筒表磁感应强 度 Roller surface magnetic induction density of separating area GS | 处理矿 石颗粒 上限 Upper limit of ore fines mm | 台时处理 能力 Processing Capacity T/h | 磁滚筒 重量 Weight of magnetic drum T | 头尾轮中 心距 Center distance between head wheel and tail wheel m | 电机功率 Power kw |
| CTDG1516 | 1500 | 1800 | 1600 | 4.5 | 1500-7000 | 550 | 800 | 6 | <30 | 30~110 |
| CTDG1220 | 1200 | 2200 | 2000 | 400 | 1500 | 10 | <30 | 30~110 | ||
| CTDG1210 | 1200 | 1200 | 1000 | 400 | 400 | 3.7 | <30 | 15~30 | ||
| CTDG1016 | 1000 | 1800 | 1600 | 250 | 550 | 3.5 | <30 | 11~37 | ||
| CTDG1014 | 1000 | 1600 | 1400 | 250 | 500 | 3.2 | <30 | 11~30 | ||
| CTDG1012 | 1000 | 1400 | 1200 | 250 | 450 | 3 | <30 | 11~30 | ||
| CTDG1010 | 1000 | 1200 | 1000 | 250 | 400 | 2.8 | <30 | 11~22 | ||
| CTDG0814 | 800 | 1600 | 1400 | 150 | 400 | 2.3 | <20 | 11~15 | ||
| CTDG0812 | 800 | 1400 | 1200 | 150 | 250 | 1.8 | <20 | 11~15 | ||
| CTDG0810 | 800 | 1200 | 100 | 150 | 200 | 1.6 | <20 | 7.5~11 | ||
| CTDGO808 | 800 | 100 | 800 | 150 | 200 | 1.45 | <20 | 7.5~11 | ||
| CTDG0806 | 800 | 800 | 600 | 150 | 150 | 1.3 | <20 | 7.5~11 | ||
| CTDG0606 | 600 | 800 | 600 | 50 | 100 | 1.15 | <15 | 7.5~11 | ||
| CTDG0505 | 500 | 700 | 500 | 50 | 50 | 1 | <15 | 4~7.5 |
