适用范围：
Application:
CTY 系列永磁湿式预选机是为磁性矿磨前
抛尾设计的湿式磁选机。
Specially designed for the mineral ores
before grinding to preseparate and discard
thetai11 ings
技术特点：
Feature:
- 给矿箱内装有均料装置，保证进入槽体的物料在滚筒长度方向上是均匀的。
The feed box is equipped with the material mixed device to make the materials into the tank body uniform in the drum longitudinal direction.
- 槽体内表面及磁滚筒外表面粘有酎磨层增加耐磨性，延长其寿命。
The wear-resistant layer,which lies inner the tank and outside of the separation drum,can strengthen the wear-resistance and prolong the service life.
- 尾矿磁性物含 MFe 显著降低，比普通磁选设备跑尾磁性物含量降低1-3%。
The magnetic minerals in the tailings are reduced apparently.It can be reduced by 1-3%than the normal separation.
- 磁系包角大，选别过程加长，精矿品位提高2-35%。
The magnetic system employs the large wrap angle to prolong the separation operation area and improve the concentrate grade about 2-35%.

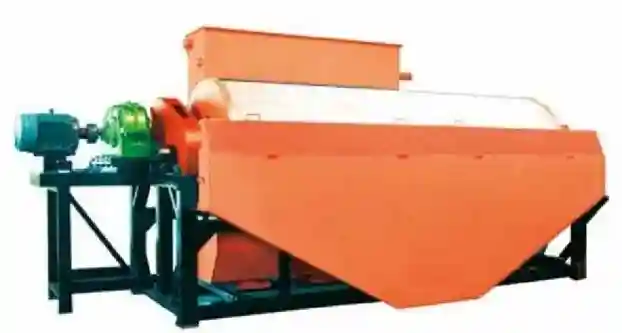

CTY Series Wet Permanent Magnetic Drum Pre-Separator
| 型号 Model | 圆筒尺寸 (筒径*筒长) Roller size(diameter length)mm | 磁感应强度 magnetic induction density GS | 处理能力 Processing capacity t/h | 驱动功率 power kw | 机器总重 weight kg |
| CTY-1021 | φ1050X2100 | ≥280 | 45-90 | 11 | 4500 |
| CTY-1024 | φ1050X2400 | ≥280 | 52-100 | 15 | 5000 |
| CTY-1030 | φ1050X3000 | ≥280 | 65-125 | 15 | 6300 |
| CTY-1218 | φ1200X1800 | ≥280 | 47-90 | 15 | 4900 |
| CTY-1224 | φ1200X2400 | ≥280 | 82-120 | 18.5 | 5900 |
| CTY-1230 | φ1200X3000 | ≥280 | 80-150 | 18.5 | 7200 |
| CTY-1530 | φ1500X3000 | ≥280 | 120-150 | 22 | 8100 |
| CTY-1540 | φ1500X4000 | ≥280 | 160-280 | 30 | 9800 |
