适用范围：
Application:
本设备主要应用于水泥、化工、煤炭、塑料、
耐火材料、建材等行业的下料管道中清除杂物。
It is widely used in cement,plastic,building
materials and chemical,coal,so on industry.
技术特点：
Feature:
1.磁场强度高，吸力大。
RCYA-1Strong magnetic intensity.
- 全密封结构。
Compact structure.
- 体积小、重量轻、安装方便。
Small volume,I ight weight,easy to install.

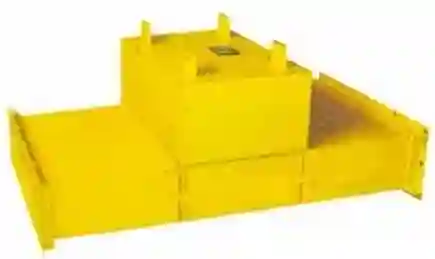

RCYA Series Pipeline Permanent Magnetic Separator
| 项 目 project 型号 Model | 处理能力 Capacity t/h | 外形尺寸 Appearance size mm | 永磁铁外形尺寸 Permanet magnet size mm | 法兰接口外形 尺寸 Flange interface dimensions mm | 适应坡度与 地面夹角To adapt to the angle of slope and the groud | 重量 Weight kg | 适应物料 Adapt to the material |
| RCYA-15 | 15 | 800*450*140 | 500*300*200 | 510*200 | 40°-50° | 210 | |
| RCYA-30 | 30 | 900*550*170 | 600*400*240 | 610*230 | 260 | ||
| RCYA-50 | 50 | 1000*650*190 | 700*500*240 | 750*290 | 420 | ||
| RCYA-80 | 80 | 1100*750*200 | 800*600*260 | 850*300 | 825 | ||
| RCYA-100 | 100 | 1200*850*220 | 1000*700*300 | 950*320 | 1050 | ||
| RCYA-150 | 120 | 1300*1000*240 | 1150*650*320 | 1100*340 | 1280 | ||
| RCYA-200 | 200 | 1400*1200*280 | 1350*800*340 | 1300*380 | 1650 | ||
| RCTA-300 | 300 | 1600*1400*310 | 1550*1200*380 | 1540*450 | 2400 |
注：安装尺寸及磁场强度可根据用户需求特殊制作。
Note:The installation and magnetic intensity can be customeriaed according to the users’special requirement.
