RCYB

For  belt  conveyor,   vibrating  conveyor  andfeeding  chute  to  eliminate  the  waste  iron.Strong   magnetic   field    intensity.Simple installation,convenient to operate,high efficiency and stable performance,free maintenance. All   technical   data   accord   with    standard   of   JB/T8711-2006.

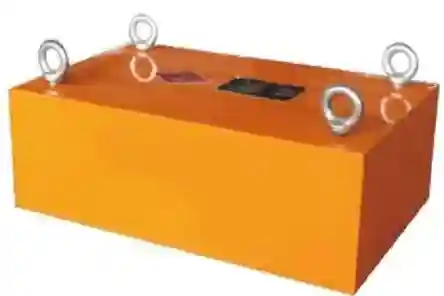

RCYB Series Suspension Magnetic Separator

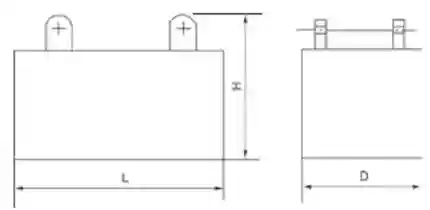

  Model Belt width mm Suspension heighth mm Belt speed ≤m/s Material ≤mm   Weight kg L 0 H
light RCYB-4-1 400 100 2.5 60 72 400 250 140
RCYB-5-1 500 120 80 96 500 270 160
RCYB-6-1 600 140 100 158 600 350 180
RCYB-8-1 800 180 140 480 800 600 260
High i ntans i ty type RCYB-4A 400 120 80 45 400 250 120
RCYB-5A 500 130 100 66 500 300 130
RCYB-6A 600 150 130 97 600 350 150
RCYB-8A 800 200 170 248 800 500 170
RCYB-10A 1000 230 200 390 1000 600 190
standard ROYB-4 400 150 100 115 400 300 230
RCYB-5 500 175 120 206 500 300 260
RCYB-6 600 180 140 295 600 400 280
RCYB-6.5 650 200 160 450 650 400 300
RGYB-8 800 250 200 680 800 600 320
RCYB-10 1000 300 250 770 1000 800 320
RCYB-12 1200 320 280 850 1200 800 350
RCYB-14 1400 350 320 1080 1400 1000 350

Note:All the models have T1,T2,T3 design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately.Discard iron belt can be equipped with armor.
