适用范围:

Application:

适用于水泥、建材、化工、煤炭、粮食、塑料、 耐火材料等行业的粉状、颗粒状、块状物料的除铁。 This  series  products  are  widely  used  for  iron   removal    of     powdery,   granulate,bulky         materials   in   the   industries,    such         as,cement,building

materials,chemicals,coal,grain,plastic,

refractory  industries  and  so  on.

 技术特点:

Feature:

  1. 独特的磁路设计,双磁极结构,透磁深度大, 磁力强。

Unique   magnetic   circuit   design   and   double   —pole

structure.

2.体积小,重量轻,垂直安装,除铁方便。

Small   size,    light     weight,vertical     installation,

separating   iron  conveniently.



  1. 全密封结构。 Sealing  structure

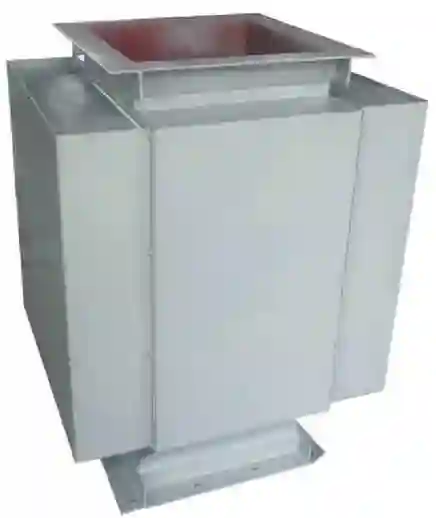

Seiries RCYF Vertical Pipeline Magnetic Separator

      型号 Model     处理能力 Capacity t/h   管道外形尺寸 Appearance size mm   永磁铁外形尺寸 Permanet magnet size mm 法兰接口外形 尺寸 Flange interface dimensions mm 适应坡度与 地面夹角To adapt to the  angle of slope and the groud     重量 Weight kg     适应物料 Adapt to the material
RCYF-15 15 350*350*500 340*300*110 400*400 75° -90' 260 任何干式物料 any dry material
RCYF-30 30 400*400*550 380*400*110 500*500 320
RCYF-50 50 450*450*600 440*400*110 560*550 450
RCYF-80 80 550*550*650 540*450*160 650*850 650
RCYF-100 100 600*600*700 590*500*200 700*700 780
RCYF-150 150 650*650*750 640*500*200 750*750 950
RCYF-200 200 700*700*800 690*500*230 800*800 1150
RCYF-300 300 750*750*850 740*500*230 860*850 1280

注:安装尺寸及磁场强度可根据用户需求特殊制作。

Note:The  installation  and  magnetic  intensity  can  be  customeriaed  according  to  the  users’special  requirement.
