适用范围：
Application:
RCYT 抽屉格栅式除铁器用于细颗粒或粉状物中剔除弱磁性
氧化物。广泛应用于陶瓷、非金属矿、耐火材料、玻璃、 化工、医药等行业。
To remove the weak magnetic oxides from the powder and
fine particle minerals. It has been widely arranged in the lines
such as ceramics,non-metal f refractory,glassf chem i calsy
pharmaceut i ca Is and so on.
技术特点：
Feature:
- 清理方式多样：有人工清理型、易清理型及自动清理型。
Various cleaning types:manual-cleaning type,eaay-oleaning type and automaticcleaning type. 2. 型式多样：有抽屉式、翼式、旋转式格栅等
Various outline shapes:drawer type,wing type and rotary type.
- 易于安装，可安装于畸形、高陡度、不规则形状的料仓上，垂直、封闭的溜槽或输料管道。 Easy installment. It can be installed on the stock bin with abnormal,steep or irregular shape,and
vertical and closed chute and convey pipeline.

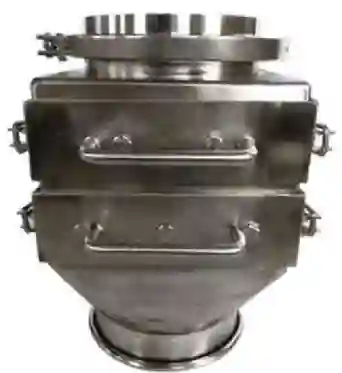

RCYT Series Grill-Drawer Type Magnetic Separator
| RCYT抽屉隔栅式除铁器(方形) Series RCYT-4 Grid Type Iron Separator (Square type) | ||||
| 型号 Model | H | L | W | 磁棒数量 Quantity (piece) |
| RCYT-2020S | 200 | 208 | 206 | 4 |
| RCYT-2525S | 200 | 258 | 255 | 5 |
| RCYT-3030S | 200 | 308 | 305 | 6 |
| RCYT-3535S | 200 | 358 | 355 | 7 |
| RCYT-4040S | 200 | 408 | 405 | 8 |
| RCYT-5050S | 200 | 508 | 505 | 10 |
| RCYT-D2020S | 270 | 208 | 205 | 5 |
| RCYT-D2525S | 270 | 258 | 255 | 7 |
| RCYT-D3030S | 270 | 308 | 305 | 9 |
| RCYT-D3535S | 270 | 358 | 355 | 11 |
| RCYT-D4040S | 270 | 408 | 405 | 13 |
| RCYT-D5050S | 270 | 508 | 505 | 17 |
注 ：D 代表双层抽屉，也可根据客户要求订做多层。
Note:D meant double layers.Several layers can made accordins to the customer’s requirements.
