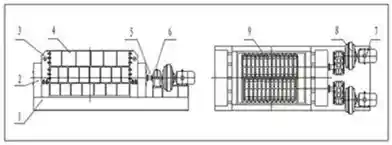

1.Motor 2.Pin Coupling 3.Reducer 4.Steel Frame 5.Locating Pin 6.Hopper 7.Bolt 8.Carrier Pin 9.Frame Assembly
The 2PGS double shaft shredder is an environmentally-friendly,waste recycling and recycling shredder that is independently developed and produced by our technicians on the basis of introducing and absorbing foreign advanced
technology,adopting customer use suggestions and accumulating years of manufacturing experience.
The shredder tool is made of special alloy steel,high-speed steel and other special processing technology.It has the
characteristics of good wear resistance,high strength and repairablity.When working,the differential tearing mode is
formed between the two tearing cutters.A crushing chamber that shreds and extrudes the incoming material to the
desired particle size.
2PGS Series Double Shaft Shredder
| No. | Specification | Crushing Chamber (mm) | Cutter Diameter mi | Cutter No. T | Motor Power KW |
| 1 | 2PGS-10 | 600×360 | ①200 | 30 | 7.5×2 |
| 2 | 2PGS-30 | 1200×360 | ①200 | 60 | 15 ×2 |
| 3 | 2PGS-15 | 600×460 | φ300 | 20 | 15×2 |
| 4 | 2PGS-30 | 1200×460 | ①300 | 30 | 22×2 |
| 5 | 2PGS-20 | 600×740 | D430 | 15 | 18.5×2 |
| 6 | 2PGS-40 | 1200×740 | φ430 | 30 | 37×2 |
| 7 | 2PGS~25 | 800×920 | φ550 | 20 | 22×2 |
| 8 | 2PGS-50 | 1200×920 | ①550 | 30 | 37×2 |
| 9 | 2PGS-30 | 1200×1006 | 中650 | 30 | 45×2 |
| 10 | 2PGS-80 | 1800×1006 | ①650 | 35 | 75×2 |
| 11 | 2PGS-60 | 1200×1510 | の800 | 30 | 55×2 |
| 12 | 2PGS-100 | 2400×1510 | φ800 | 60 | 110×2 |
| 13 | 2PGS-120 | 3600×1510 | ①800 | 60 | 160×2 |
