Introduction

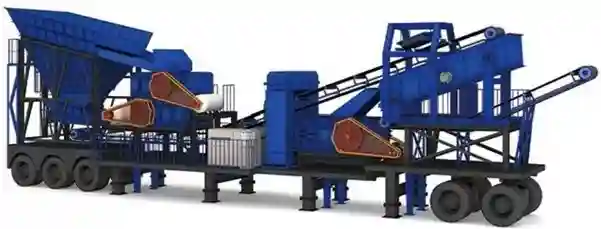

The mobile crushing station is an efficient mobile moving station independently developed by our company.It is divided into a tire-type mobile crushing station and a belt-type mobile station.It is suitable for coarse andmedium-fine moving operations of solid materials with compressive strength of 300Mpa.Such as construction waste disposal.Open-pit mine mining,various mining development,artificial sand making and other industries.And a similar mobile crushing situation as described above.

The mobile crushing station is mainly composed of hopper,vibrating feeder,crusher,vibrating screen,beltconveyor,electric control system,vehicle chassis and generator (optional).It can be divided into a type ofmobile jaw crushing station,a toothed roller moving mobile station,a impact moving crushing station,a conemoving crushing station,and the like.

working principle

The design concept of the mobile crushing station is to reduce the complicated base configuration andeliminate complicated logistics operations for the user’s small venue.And can reach the work site under anyterrain.Once you get to the job site,you can work,and provide customers with simplicity and efficiency.Low-cost operating  hardware facilities,according to different technical  requirements,constitute  a “first crushafter sieve”or “first screen after crushing”process,and can be combined with various equipment configurations.working principleThe bulk material is uniformly fed into the crusher by the vibrating feeder,and the crushed material is sent to the vibrating screen for screening by the belt conveyor.Divide materials of different levels of granularity.

The  materials meeting the particle size requirements are respectively sent by the belt conveyor to the finishedmaterial pile,which does not meet the requirements of the granularity.The block is returned to the crusher by the belt conveyor and then broken again.Form a closed loop.Performance characteristics

Performance characteristics

1.It can carry out mobile work,high production efficiency,low operating cost and high profit.2.The advanced electronically controlled operating system ensures safe and reliable operation of the mobile crushing station,in addition to start-up,shutdown and routine maintenance.This does not require manualoperation.3.The  bottom  chassis  adopts  all-steel  ship  structure,high  strength,low  grounding  ratio,good  passability,andgood adaptability to mountains and wetlands.4.The well-developed high-torque traveling motor has high driving force and high reliability.The walkingsystem adopts imported full-power variable open hydraulic system.Excellent performance,able to make fulluse of the power of the engine.5.The broken crushing equipment uses the most mature products produced by the company,and theperformance is reliable;the screening equipment adopts 20°inclination angle,and the screening is efficientand reliable.6.High-performance generators can be configured when there is no power source in the field,featuring lowfuel consumption,low noise and reliable performance.

The  2PGS  double  shaft  shredder  is  an  environmentally-friendly,waste  recycling  and  recycling  shredder  that  is independently developed and produced by our technicians on the basis of introducing and absorbing foreign advanced

technology,adopting customer use suggestions and accumulating years of manufacturing experience.

The shredder tool is made of special alloy steel,high-speed steel and other special processing technology.It has the

characteristics of good wear resistance,high strength and repairablity.When working,the differential tearing mode is

formed between the two tearing cutters.A crushing chamber that shreds and extrudes the incoming material to the

desired particle size.

Introduction

PPC type air box pulse bag type dust collector is a new type of dust colector developed and proclucedby our company to absorb the advantages of various foreign dust collectors.This senes of products has dozens of speciications,which are dvided into several boxes according tö the size of the dust collector.There are four kinds of bags in each room:32. 64.96,and  128  bags.The  length  of  the  fiter  bag  is  2.450  mm  and  3060  mm.The  amount  of  flue  gas  treated  is 3000-3000000m3/h,the concentration of flue gas dust is ≤1200g/Nm3,the dust removal efficiency can reach above 99.9%,and the dust concentration of the  purified  gas  is  less  than  50g/Nm3,which  can  meet  the  requirements  of cement,electric power,metalurgy,chemical industry,etc.A variety of flue gas dust treatment needs are required in the

industry.

Working    PrincipleThe dusty gas enters the ash bucket from the air inlet of this equipment Partof the coarser dust particles due to inertialcollision,Natural sedimentation and other reasons fall into the ash here.Most of the dust particles nise to the bagchamber with the airflow.After fitering through the fiter bag,the dust particles are retained on the outer surface of thefiter bag.The purified gas enters the box from the inside of the fiter bag,and then the valve plate hole and the air outletport are arranged.Into the atmosphere.Achieve the purpose of dust removal.As the filtration process continues,thedust on the outer surface of the fiter bag gradually increases,and the running resistance of the dust collector graduallyincreases When the resistance reaches a preset value,the cleaning controllersends a signal.First control the poppetvalve to close the valve plate hole.In arder to cut off the fitered airflow,stop the fltration process,and then the batterypulse valve opens,injecting compressed air into the tank in a very short time.The compressed air expands rapidly in thetank and flows into the interior of the filter bag,causing deformation and vbration of the fiter bag,In accition,the duston the outer surface of the fiter bag is removed into the ash hopper.After the cleaning is completed.The poppet valveopens again The dust collector enters the filtering working state,and the cleaning control has two control modes timingand constant resistance.

High gradient magnetic separator is mainly applicable in separating weak magnetic ore whose size   is   lower    than    5mm    and    removing    iron    from    non-magnetic    ore,such    as     mica    power,quartz  feldspar,nepline,,fluorite,sillimanite,spodumene,kaoline,manganese,weak                    magnetite  pyrrhotite,calcined     ore,ilmenite,hematite,limonite,si      derite,chromite,wo     i      fram      i     te,columb i       te-tantal       ite,red  mud,etc.Also    can    be    used    for    removing    iron    for    coal,nonmagnetic    ore    and building     material.

技术特点：

Feature:

1.内敛永磁磁路，磁场强度2000-12000Gs。

Adopting internal rotation permanent magnetic circuit,low energy consumption。

2.可配置聚磁分选介质，适合不同比磁化系数矿物的富集且同时可降低粒级回收下限

It can be configured with magnetic matrices to suit for the enrichment of minerals with different ratio susceptibility and can reduce the lower limit of recycling for granularity Level.

3.广义空间分选，不堵塞，分选粒度0-20mm。

Large sorting space,no-blocking,Partide sorting is from 0 to 20mm.

4.周边齿轮传动，结构紧凑，维护保养方便。

Transmitted by peripheral gear,Compact structure.

5.强磁性和弱磁性矿物同时分选。

It can separate strong magnetic minerals and the weak at the same time.

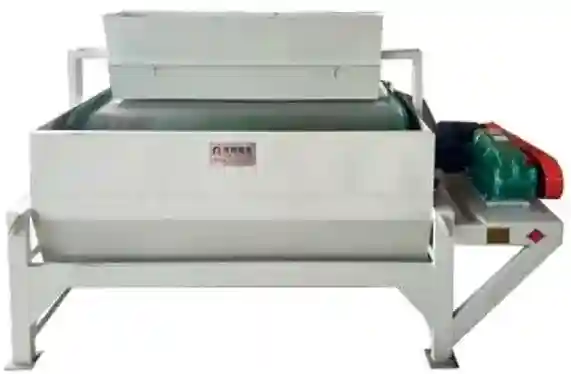

技术特点：

Feature:

1. 磁系采用大包角设计，矿粉回收率可高达99.5%。

Large    broad-angle    magnetic     system,ore    recovery     rate    can     reach    99.5%

2. 结构简单、脱水效率高、精矿浓度达45-70%以上。

Simple    structure    and    high    efficiency,concentrate    concentration    can     reach    up    to    45-70%above. 3. 在卸矿侧用刮板代替水洗卸矿，矿浆浓度高。

Using   a   scraper    at   the    unloading   side   instead    of   washing,slurry   concentration    is   high.

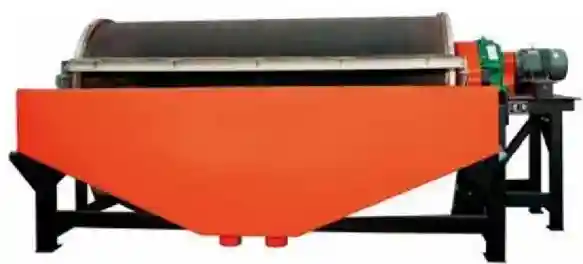

技术特点：

Feature:

1. 给矿箱内装有均料装置，保证进入槽体的物料在滚筒长度方向上是均匀的。

The   feed   box   is   equipped   with   the   material   mixed   device   to   make   the   materials   into   the   tank   body uniform   in   the    drum   longitudinal   direction.

2. 槽体内表面及磁滚筒外表面粘有酎磨层增加耐磨性，延长其寿命。

The    wear-resistant    layer,which     lies    inner     the    tank     and    outside     of    the    separation     drum,can strengthen  the  wear-resistance  and   prolong  the  service   life.

3. 尾矿磁性物含 MFe 显著降低，比普通磁选设备跑尾磁性物含量降低1-3%。

The   magnetic   minerals   in   the    tailings   are    reduced    apparently.It    can   be   reduced   by    1-3%than   the normal    separation.

4. 磁系包角大，选别过程加长，精矿品位提高2-35%。

The   magnetic   system   employs   the   large   wrap   angle   to   prolong   the   separation   operation   area   and improve   the   concentrate   grade   about   2-35%.
